Trailers Direct are proud suppliers of BTH Horse Floats.

The Horse Floats are a premium trailer crafted for horse owners who demand top-notch quality, comfort, and durability. Designed with meticulous attention to detail, these models offer advanced features to ensure the safety and well-being of your horses while providing a smooth and stress-free towing experience.

Robust Chassis Construction

  • The chassis is built with double hot-dip galvanized RHS with 3.5mm to 4.0mm thickness, ensuring exceptional strength and resistance to rust and corrosion. This provides a solid foundation for the float, ensuring it withstands the test of time and varying road conditions.

Lightweight and Durable Frame

  • The frame material is also double hot-dip galvanized RHS with a 2.5mm thickness. This design balances structural integrity with manageable weight, making towing easier and more efficient.

High-Quality Body and Roof

  • The body panels are made from galvanized steel (1.0mm to 1.5mm), providing excellent durability and resistance to wear. The roof is crafted from special moulded FRP (Fiber Reinforced Plastic), ensuring weather protection and a sleek finish.

Safety and Stability

  • Equipped with electric brake system, which provides reliable stopping power. Two specialized trailer axles and roll rocker tandem spring suspension with six plates enhance stability and reduce impact, ensuring a smooth ride for your horses.

Comfortable and Horse-Friendly Interior

  • The interior features 10mm rubber matting on both the ramp door and floor for a non-slip, horse-safe surface. The inner side panels are lined with 6mm rubber matting for added protection. An 18mm hardwood plywood floor ensures a strong and durable base for secure footing.

Functional Windows and Ventilation

  • Models include various window configurations, providing ample light and ventilation for your horse or horses. Vents further enhance airflow, ensuring comfort during transport.

Convenient Storage and Accessibility

  • The ramp door is fitted with high-intensity anti-rust struts and durable copper hinges for easy operation.

Additional Specifications:

Wheels and Tires:

  • 14-inch rims with commercial tires for reliable performance and stability on the road.

Lighting:

  • Equipped with six side lamps, LED rear lamps, and retro reflectors to ensure visibility and safety during travel.

Protection Features:

  • The horse protection frame is fully padded for your horses’ comfort. Four horse rings provide secure tie-down points, and the extended mudguard protects against road debris.

Trailer Plug:

  • Comes with a square 7-pin plug, ensuring compatibility with most standard vehicles.

Dimensions:

Please refer to the detailed brochure, which lays out all the various features and specifications for each of the models on offer.

Download PDF

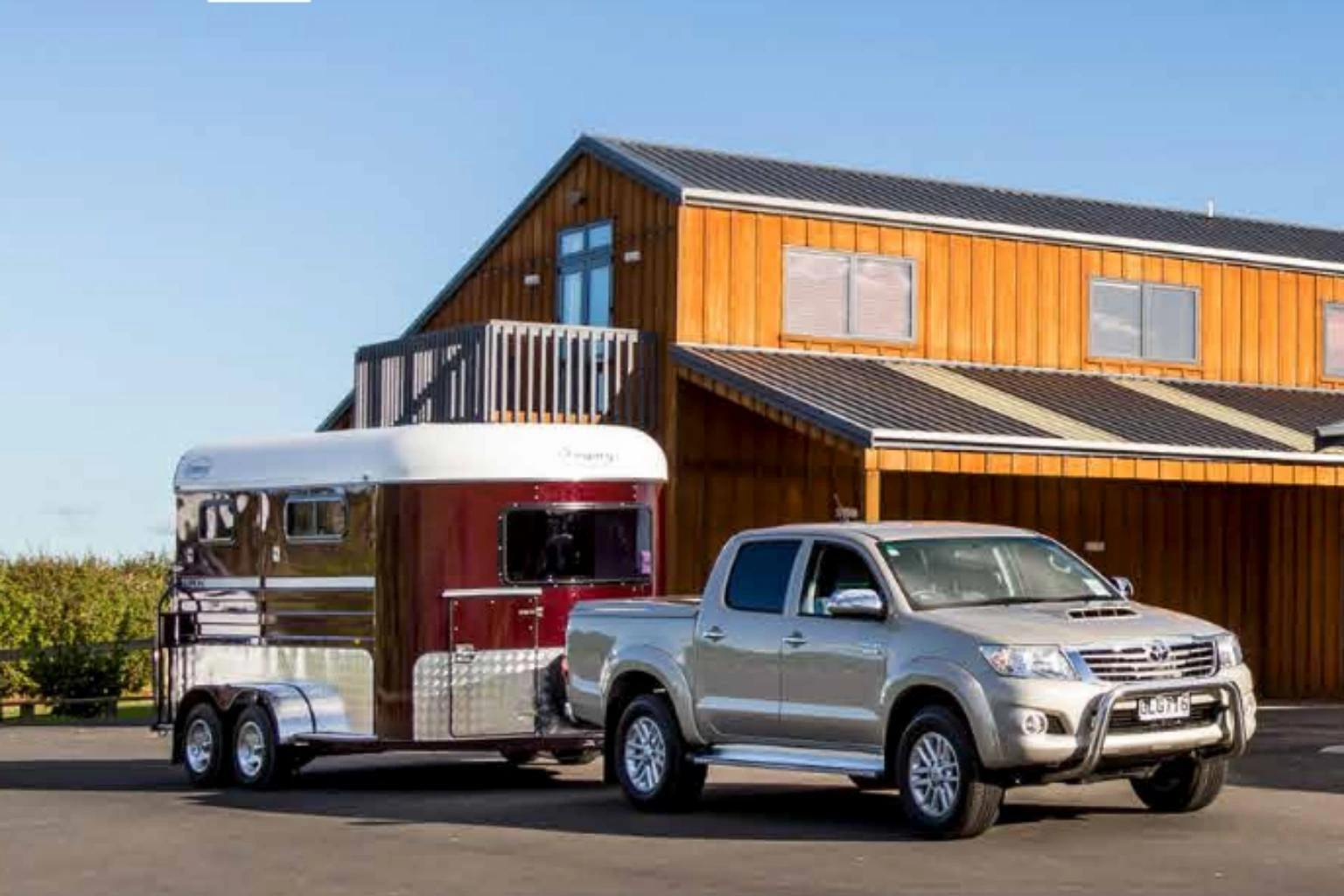

  • Horse Floats

    Horse Floats

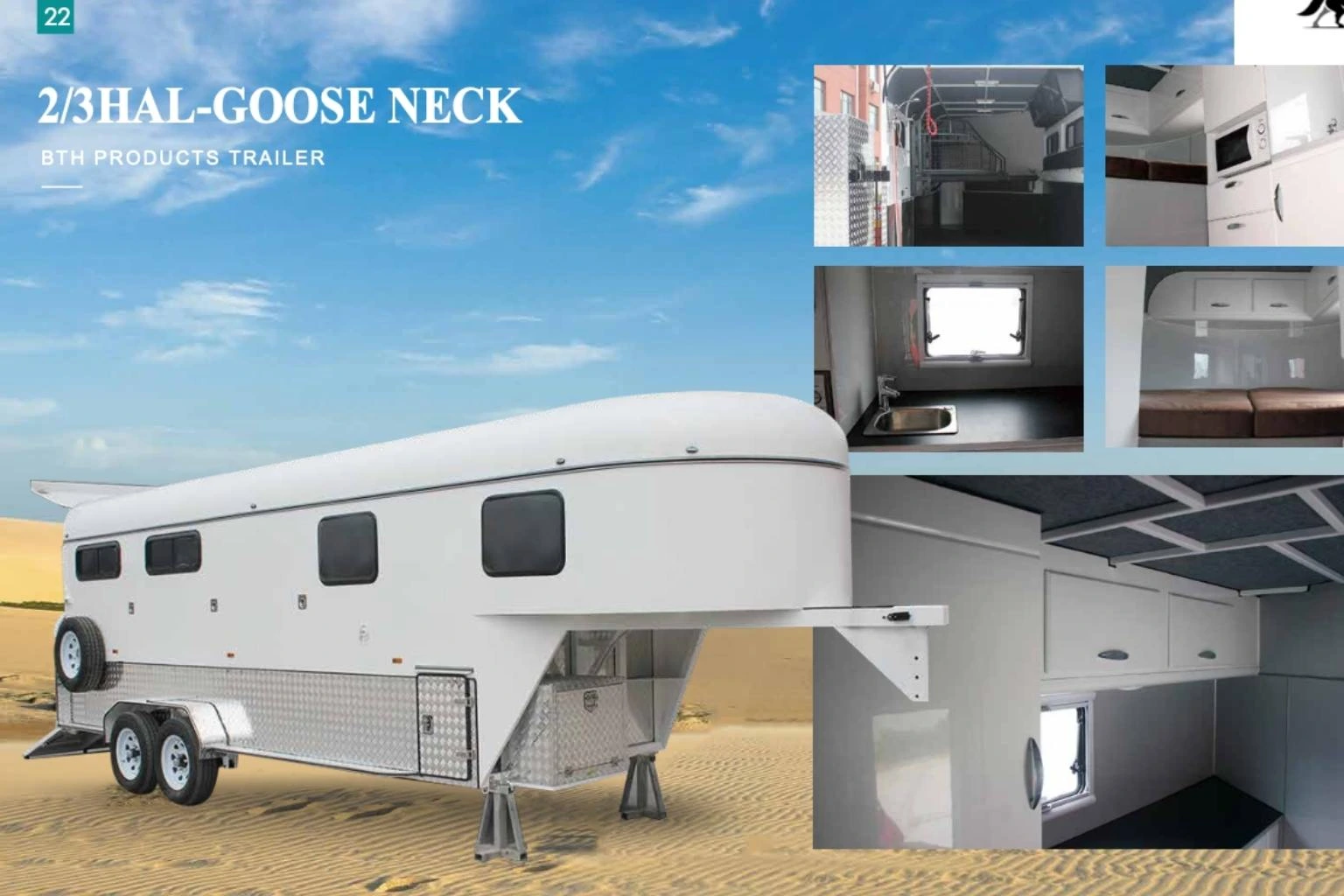

  • 2_3HAL-Goose Neck

    2_3HAL-Goose Neck

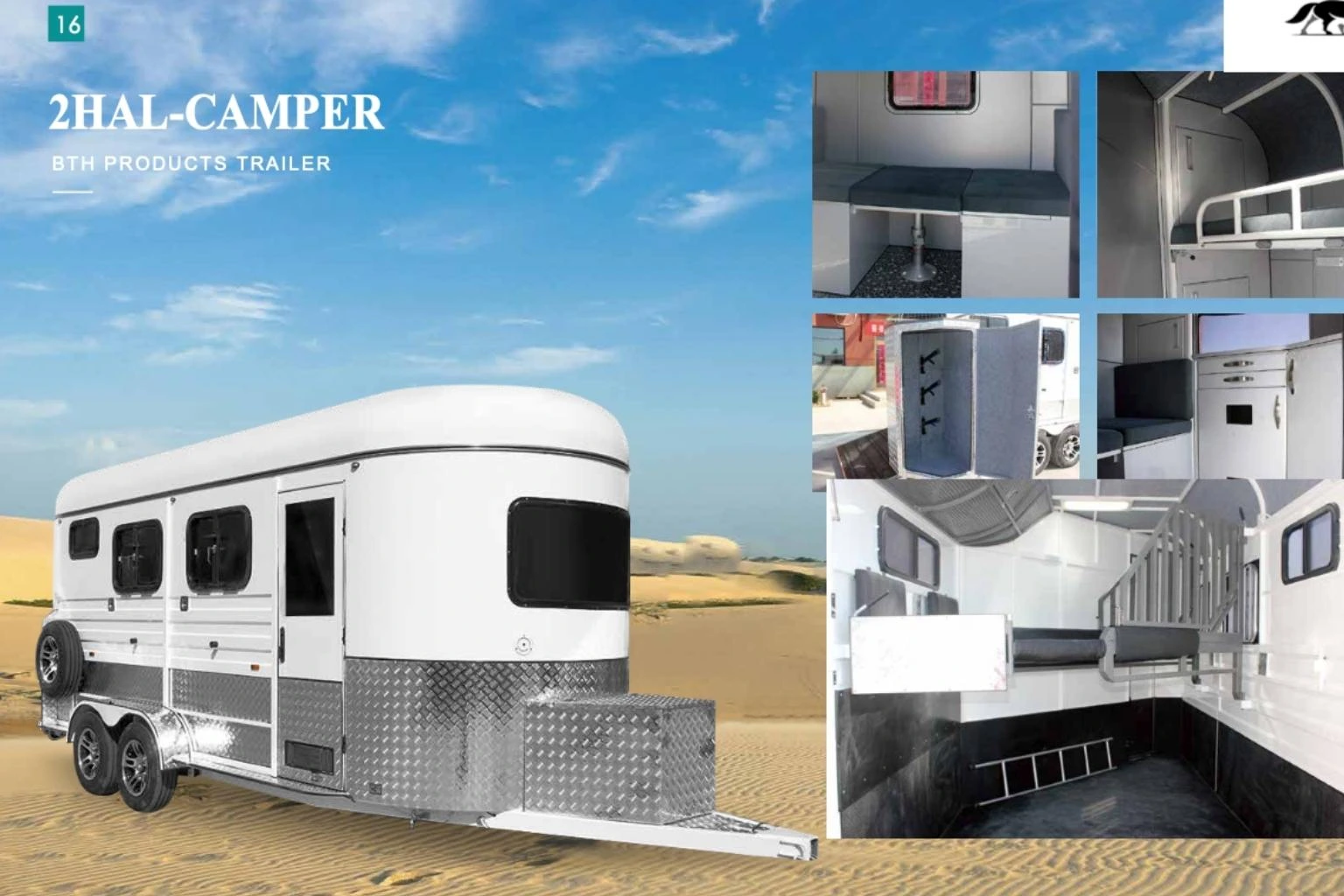

  • 2HAL-Camper

    2HAL-Camper

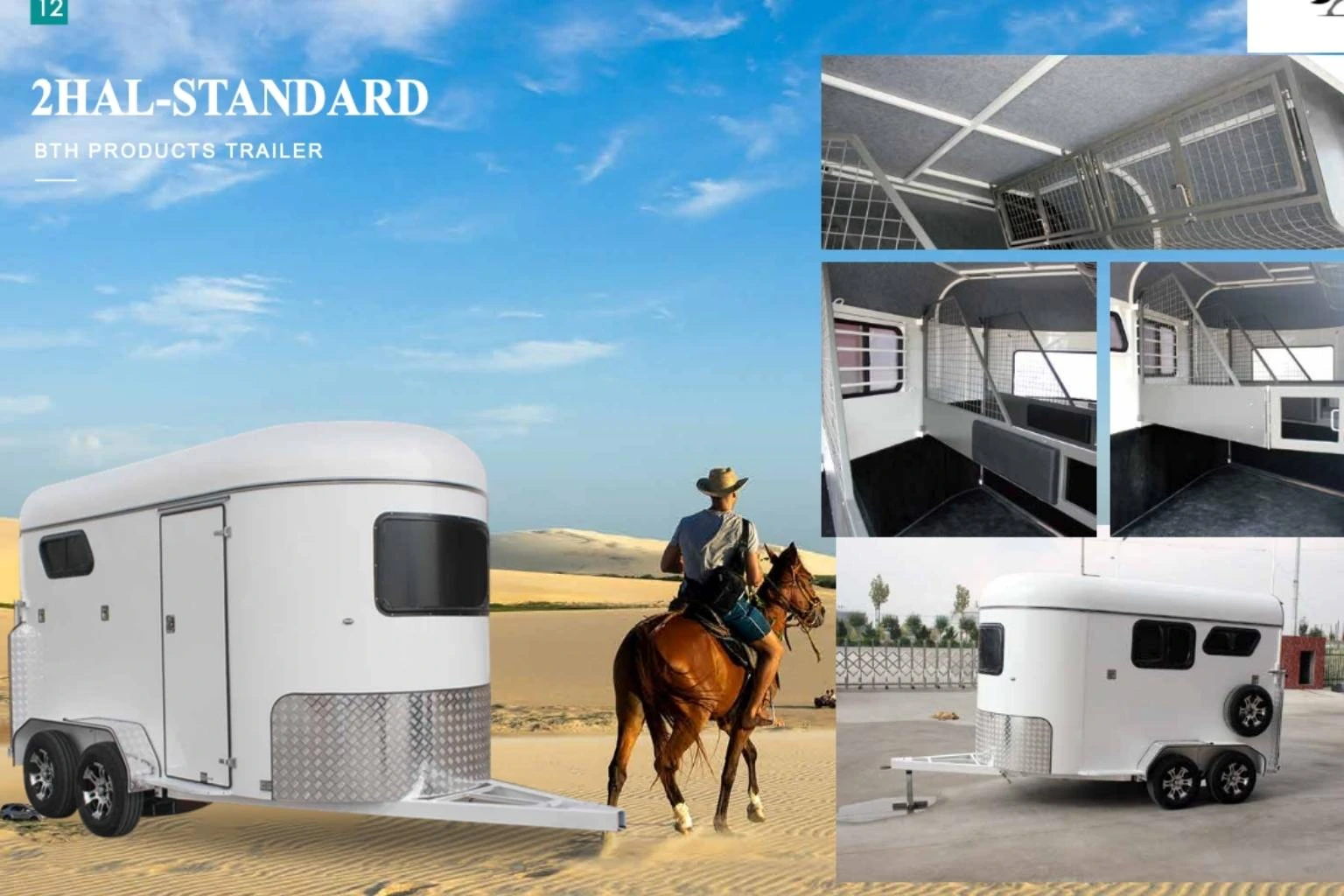

  • 2HAL-Standard

    2HAL-Standard

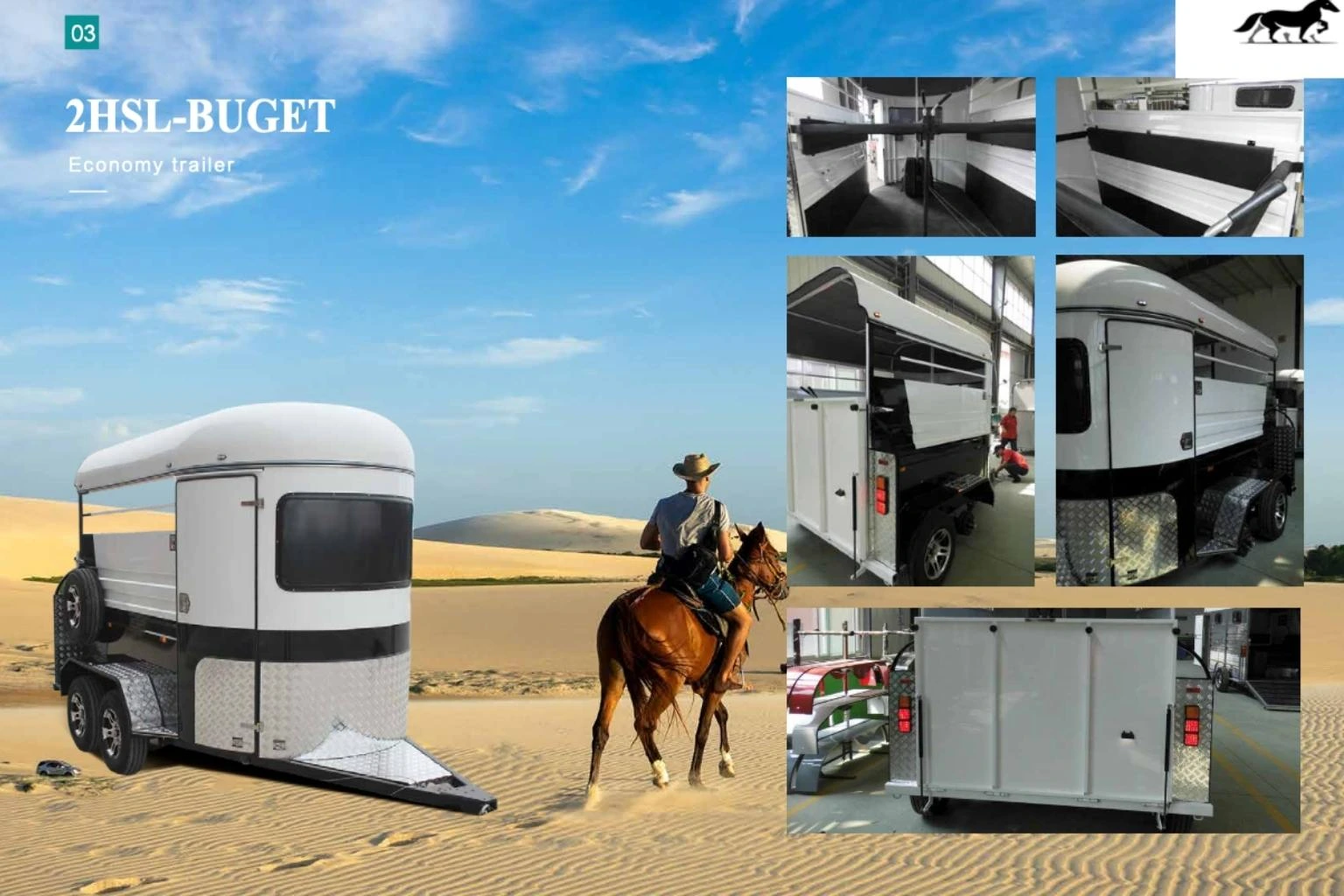

  • 2HSL-Buget

    2HSL-Buget

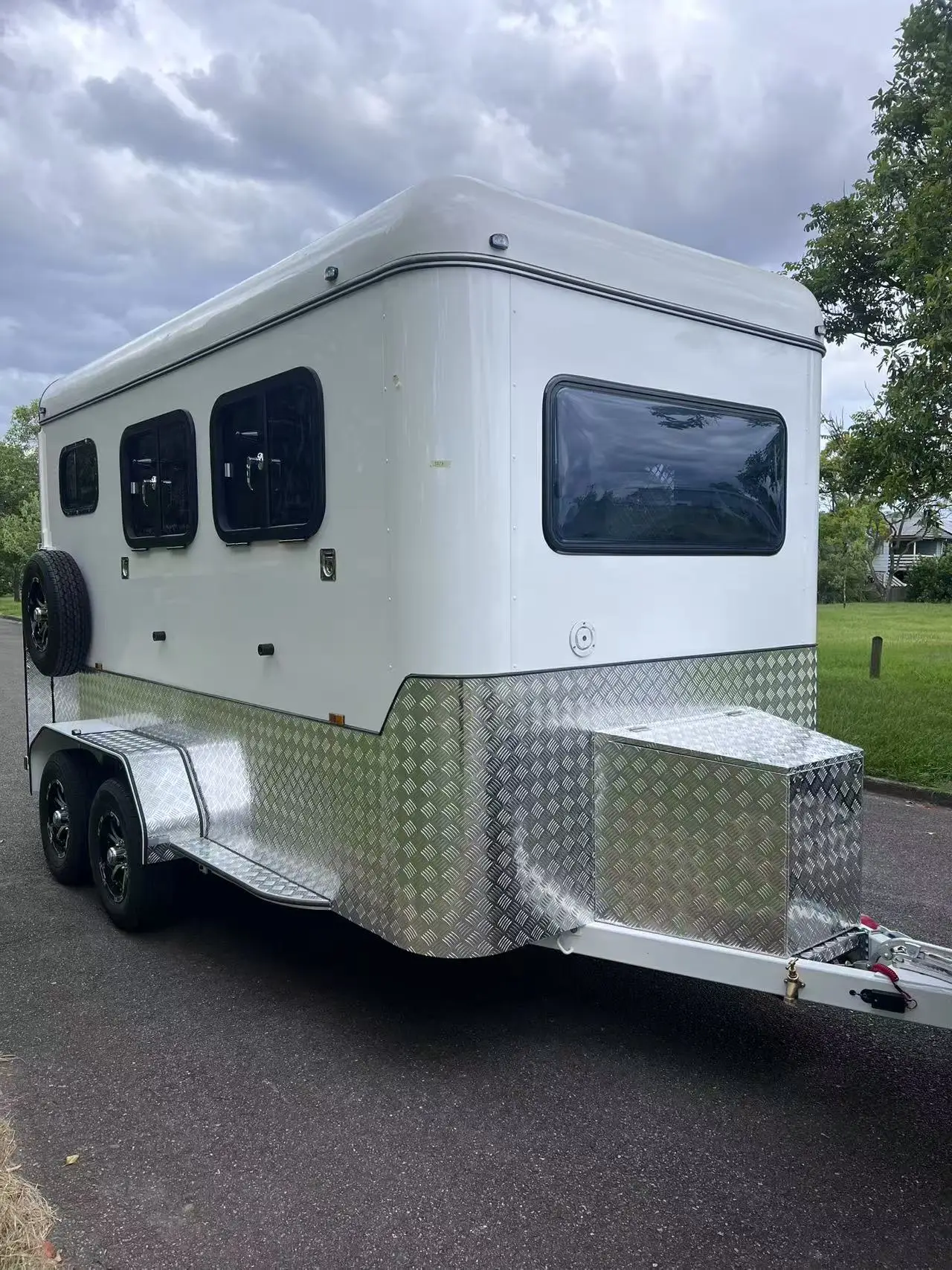

  • 2HAL-LUX-BTH-Products-Horse-Float-angle-load-1

    2HAL-LUX-BTH-Products-Horse-Float-angle-load-1
  • 2HAL-LUX-BTH-Products-Horse-Float-angle-load-15

    2HAL-LUX-BTH-Products-Horse-Float-angle-load-15

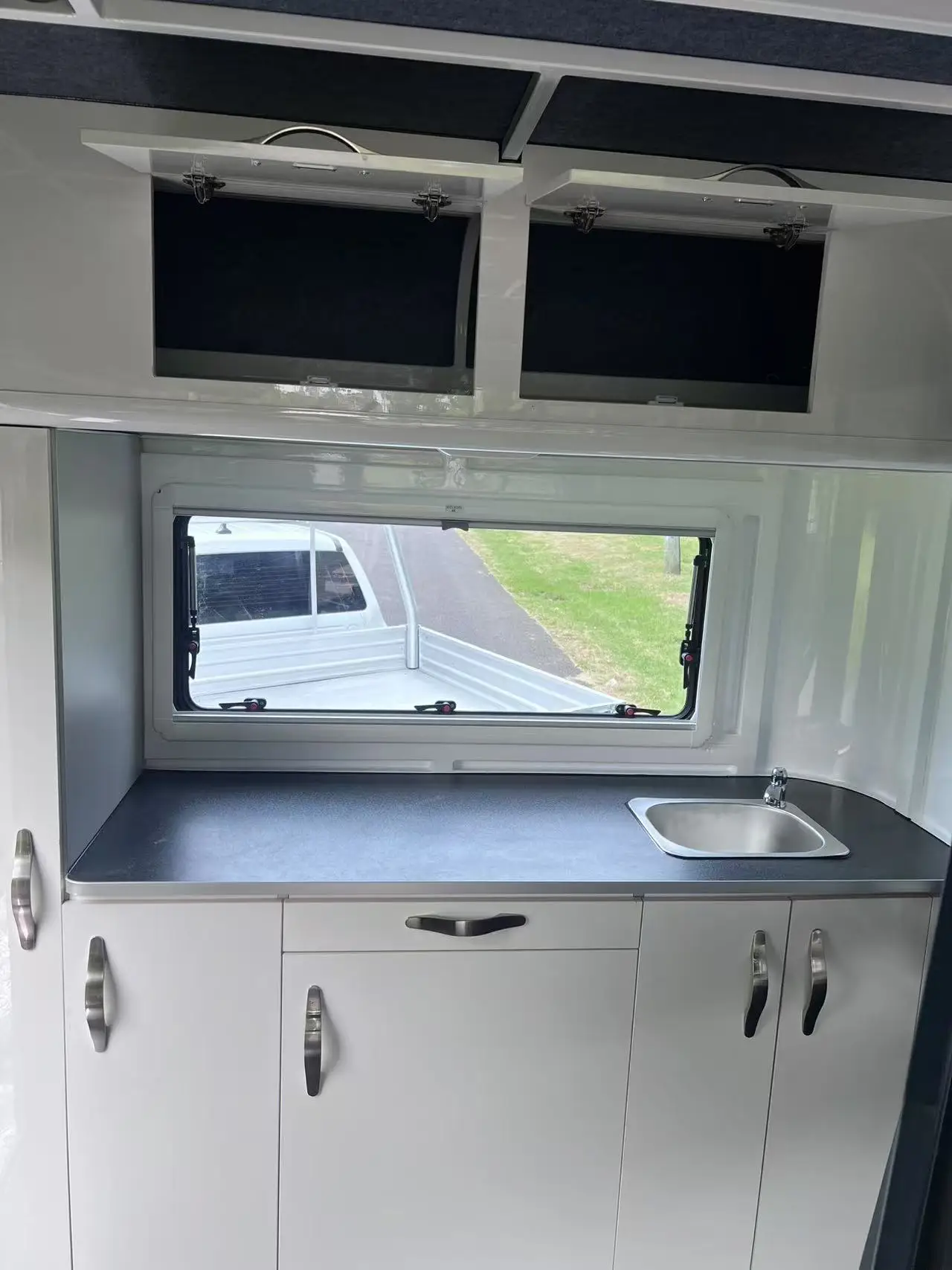

  • 2HAL-LUX-BTH-Products-Horse-Float-angle-load-19

    2HAL-LUX-BTH-Products-Horse-Float-angle-load-19

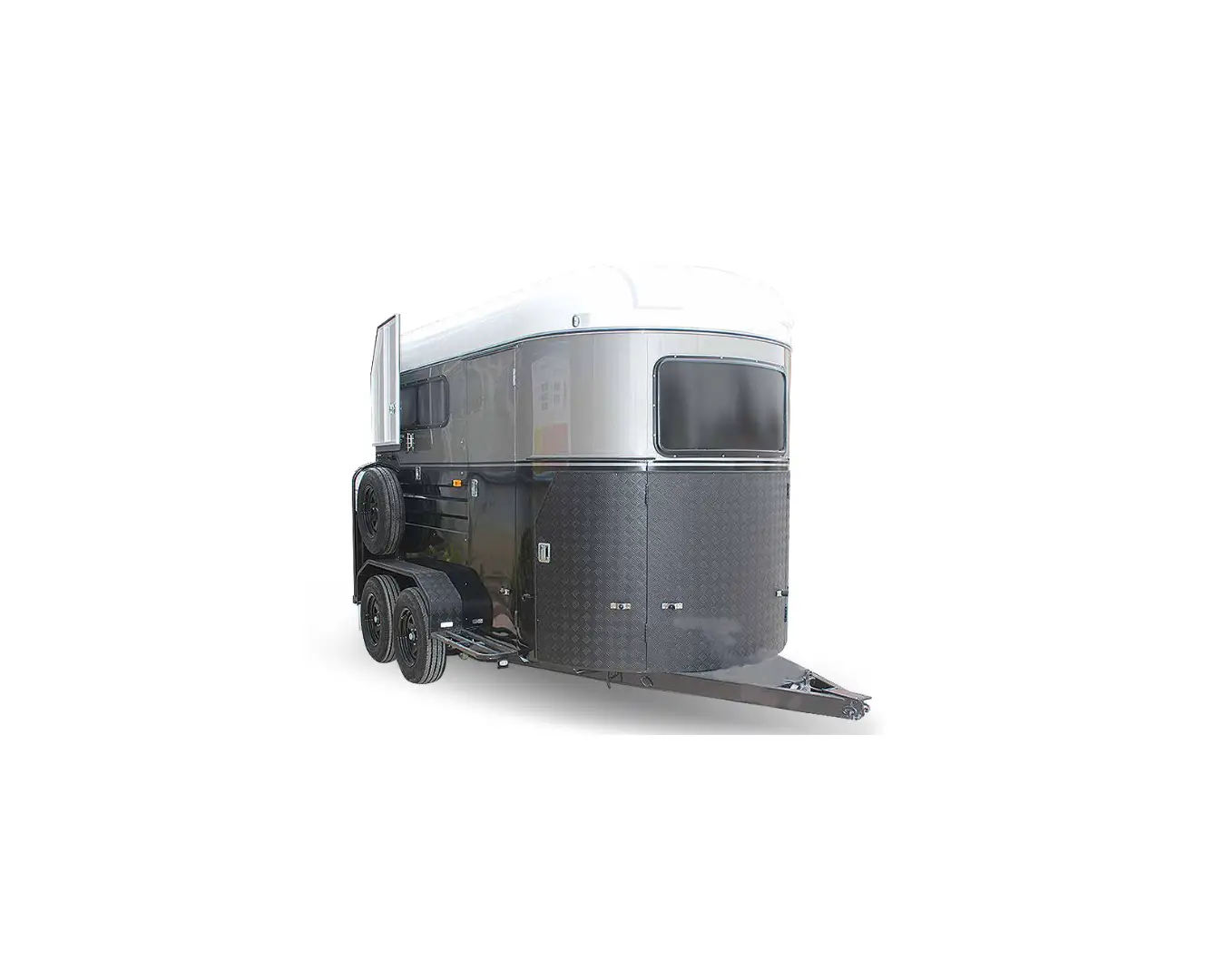

  • 2-horse-single-load-float-BTH-Products

    2-horse-single-load-float-BTH-Products

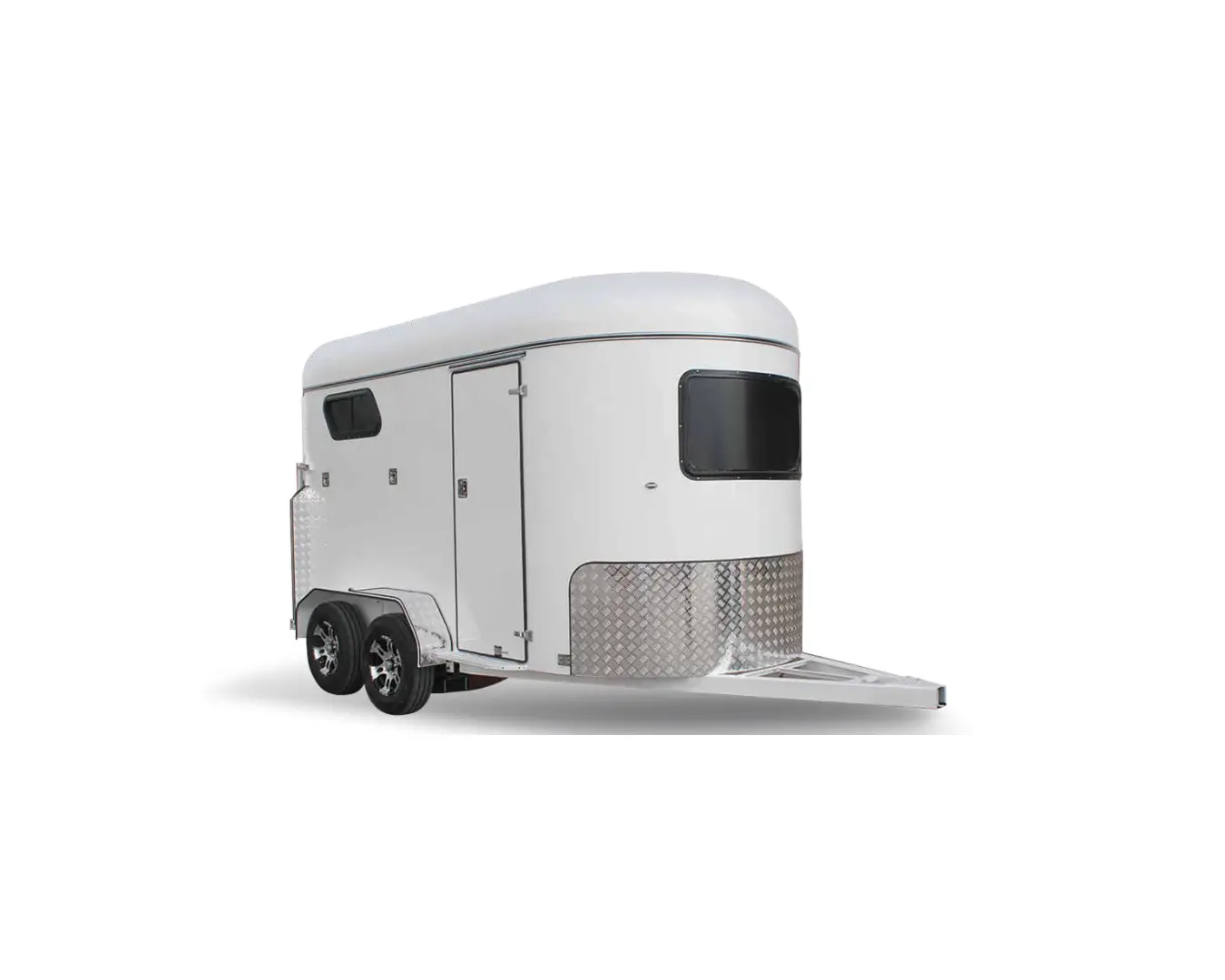

  • 2Horse-standard-float-BTH-Products

    2Horse-standard-float-BTH-Products

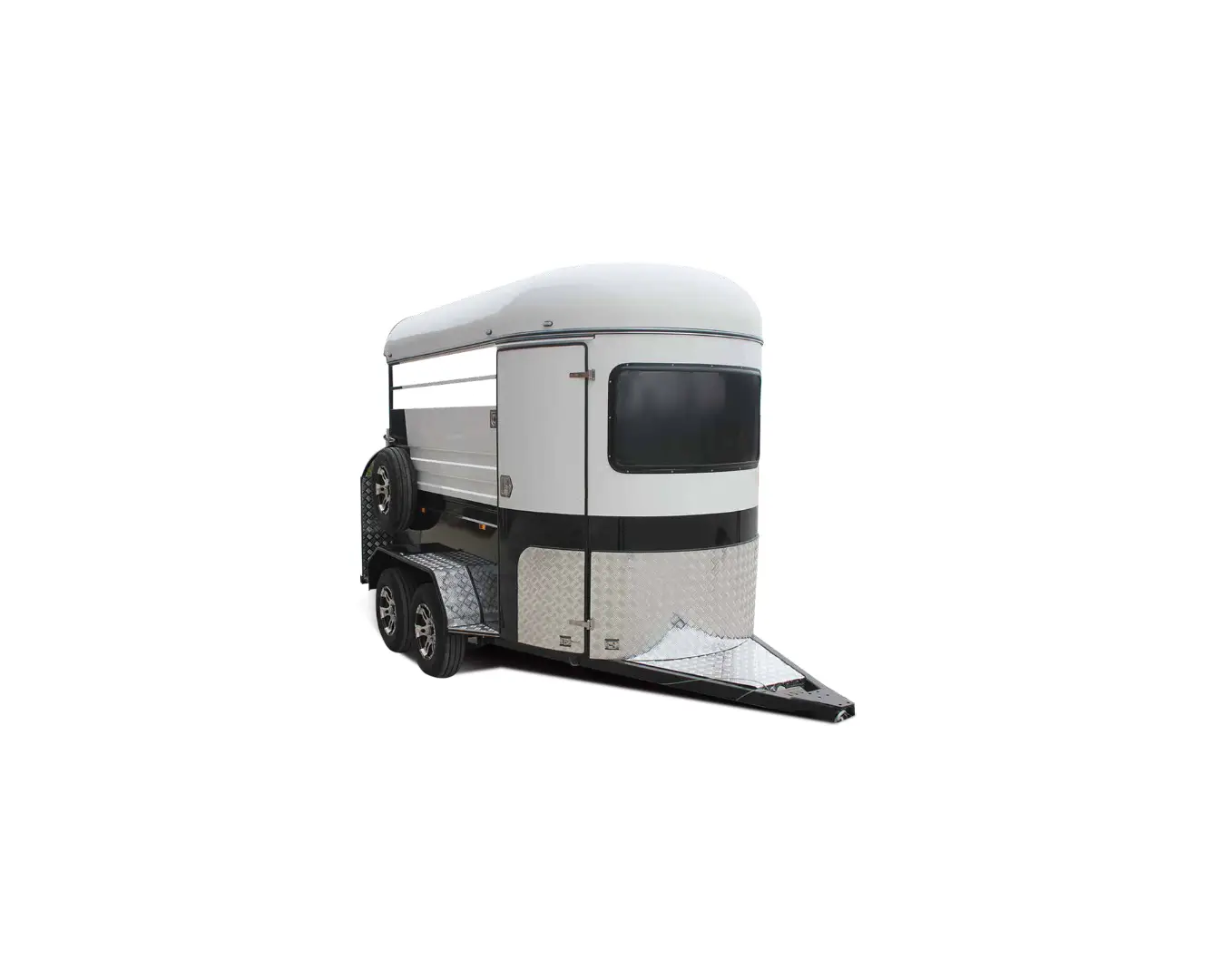

  • 2HSL-Economy-BTH-Products

    2HSL-Economy-BTH-Products

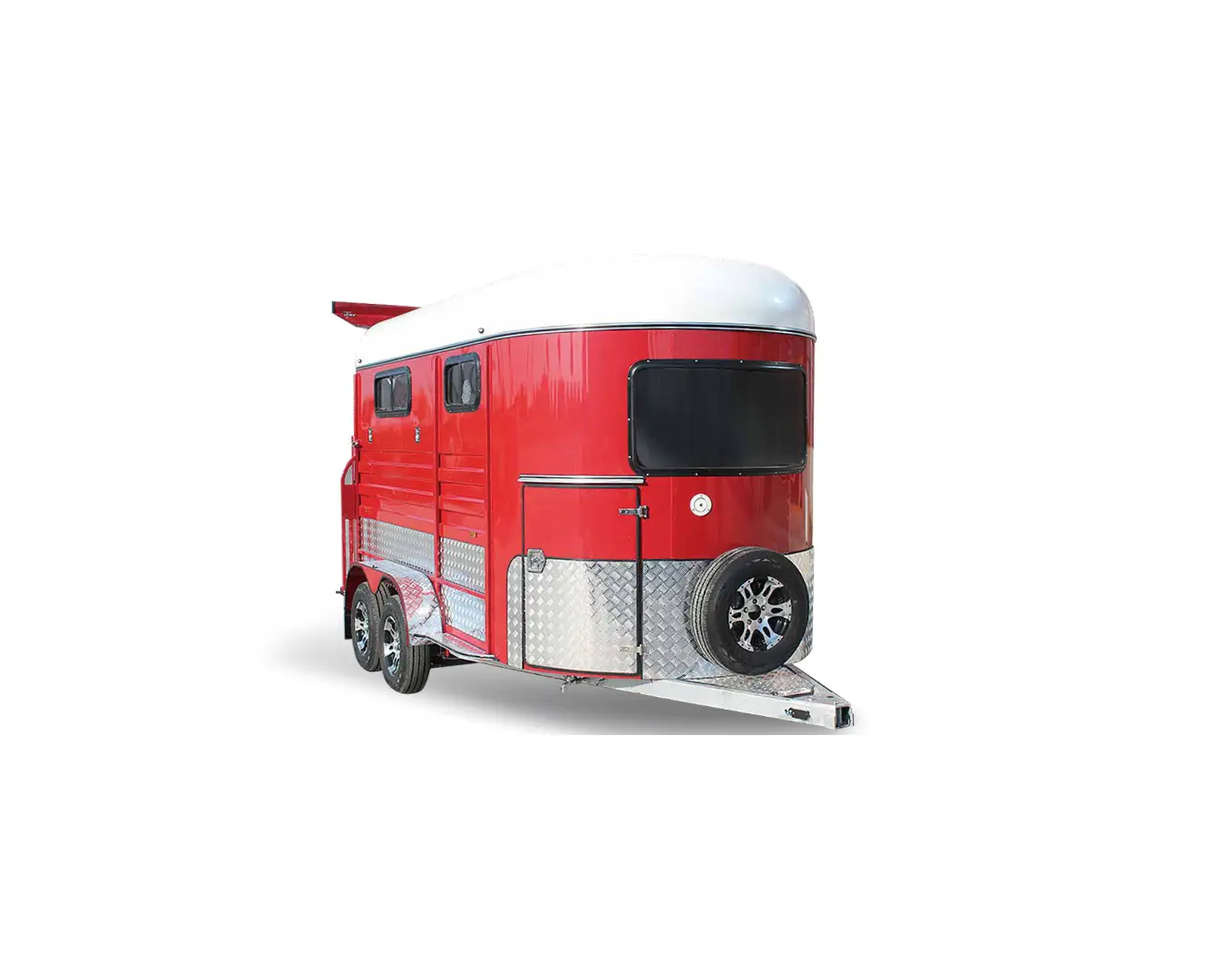

  • 2HSL-Luxury-BTH-Products

    2HSL-Luxury-BTH-Products

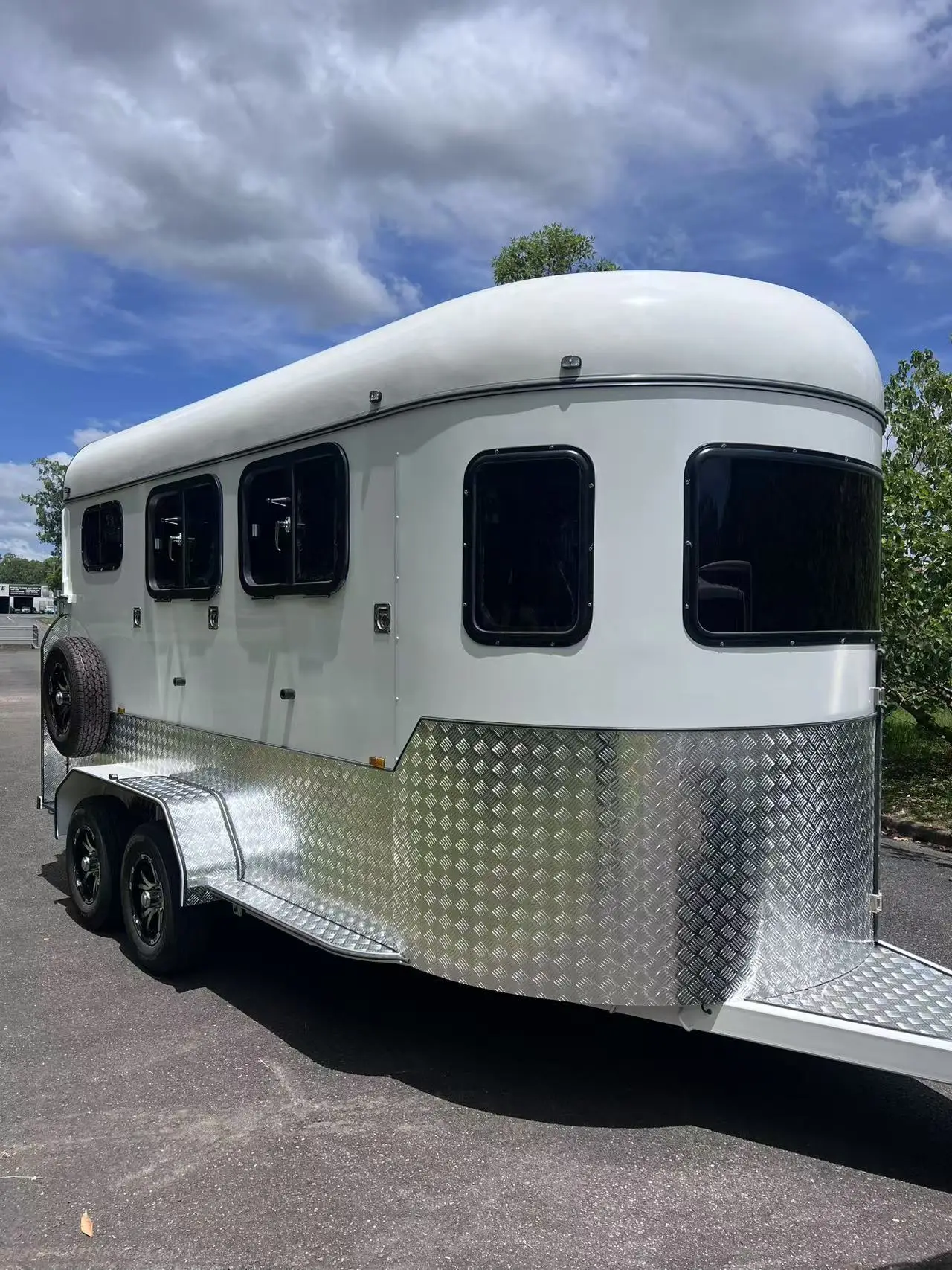

  • 3-Horse-angle-load-horse-float-supplied-by-BTH-Products-Australia-1

    3-Horse-angle-load-horse-float-supplied-by-BTH-Products-Australia-1

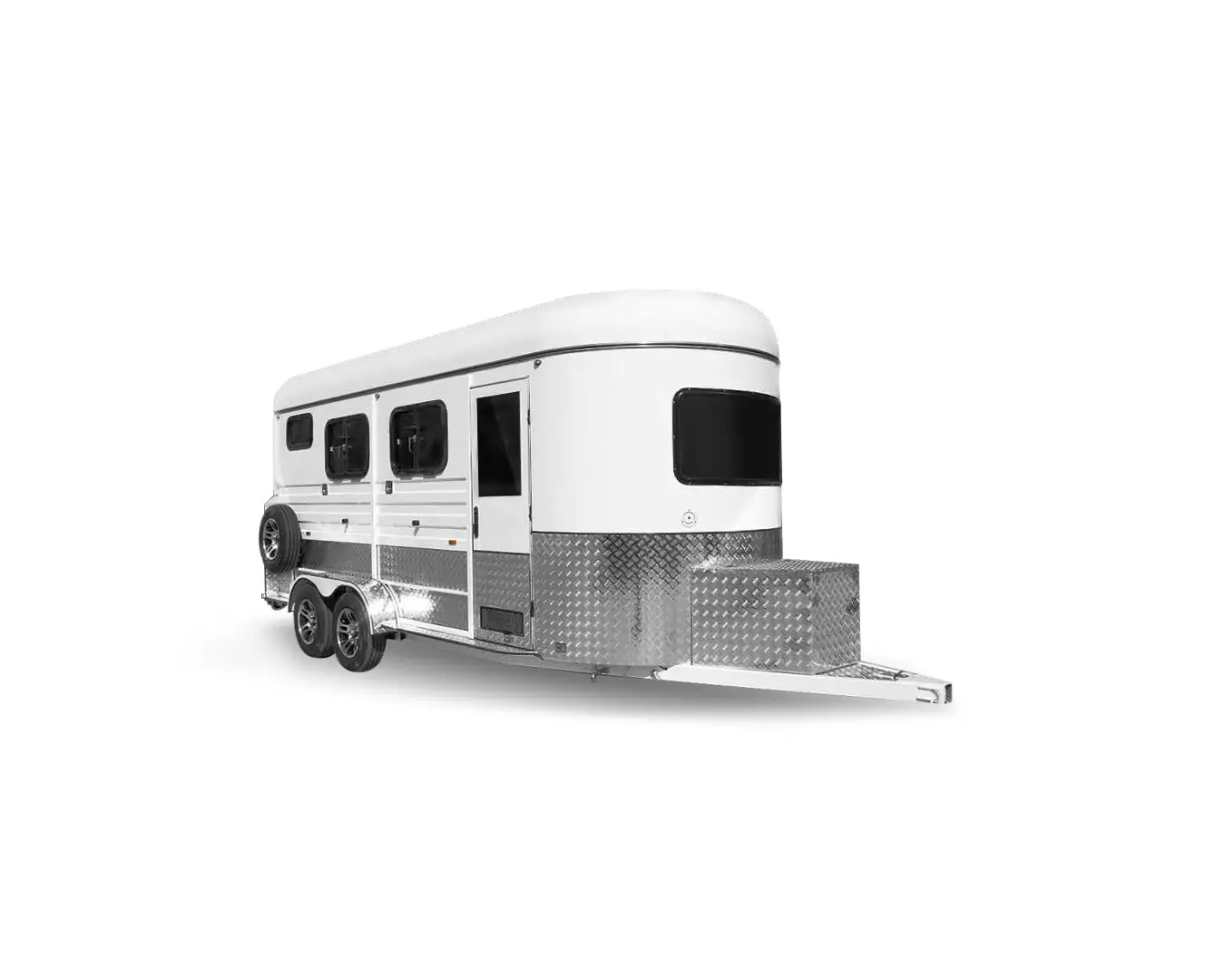

  • Camper-BTH-Products

    Camper-BTH-Products

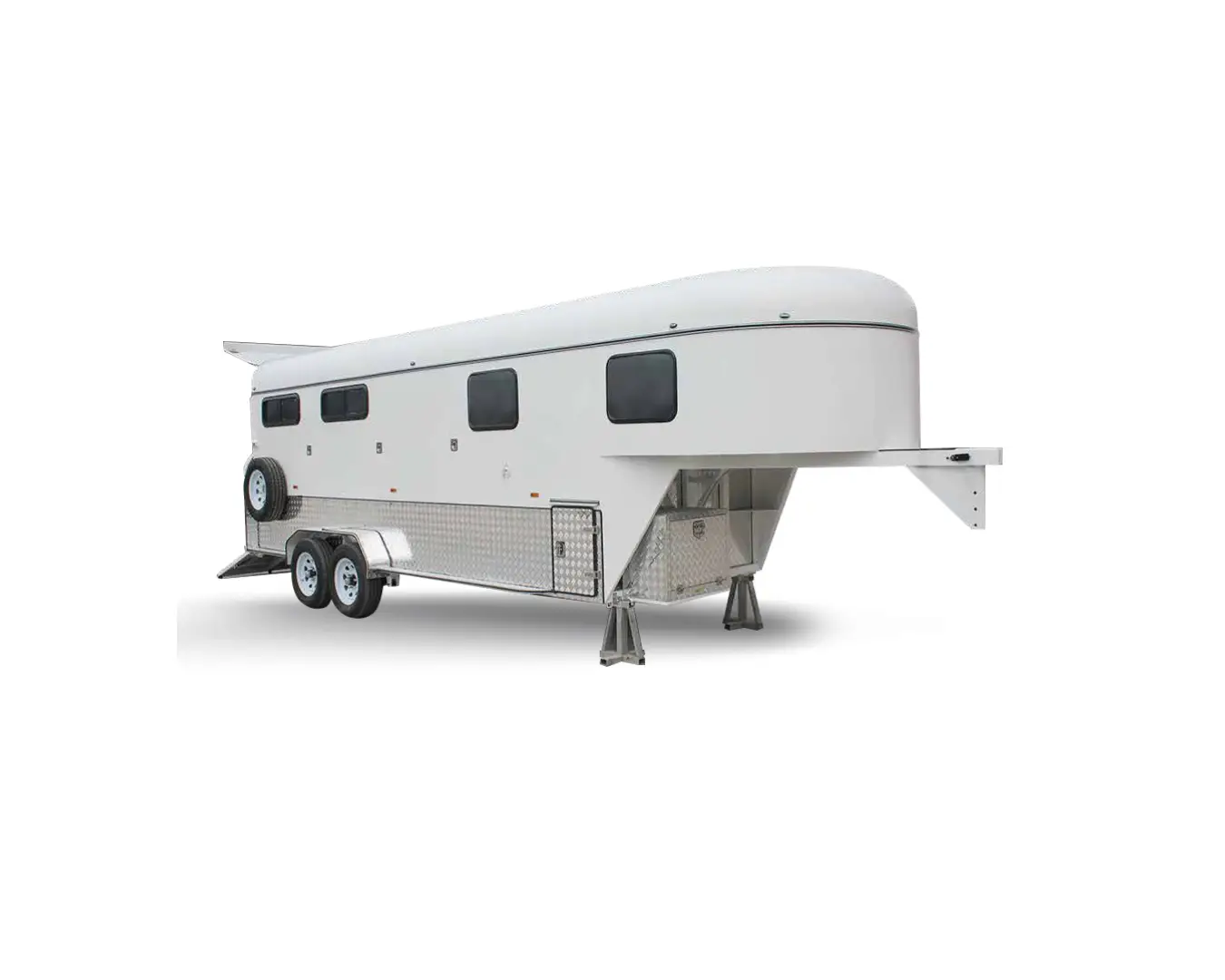

  • Goose-nech-horse-float-BTH-Products

    Goose-nech-horse-float-BTH-Products
  • Horse Floats
  • 2_3HAL-Goose Neck
  • 2HAL-Camper
  • 2HAL-Standard
  • 2HSL-Buget
  • 2HAL-LUX-BTH-Products-Horse-Float-angle-load-1
  • 2HAL-LUX-BTH-Products-Horse-Float-angle-load-15
  • 2HAL-LUX-BTH-Products-Horse-Float-angle-load-19
  • 2-horse-single-load-float-BTH-Products
  • 2Horse-standard-float-BTH-Products
  • 2HSL-Economy-BTH-Products
  • 2HSL-Luxury-BTH-Products
  • 3-Horse-angle-load-horse-float-supplied-by-BTH-Products-Australia-1
  • Camper-BTH-Products
  • Goose-nech-horse-float-BTH-Products
Enquiries Welcome Ph. 1300 866 869
View all Trailers

The outside story:

  • Full aluminium body kit – stone chip protection all around
  • One piece hot dipped galvanised chassis
  • Galvanised steel frame and 2mm Aluminium side panels
  • Axles are made from 50mm solid steel bar with 12inc elect brakes
  • Suspension for load sharing on uneven terrain 9leaf spring
  • 11 Lubrication points on suspension (brass bushed) pins and ramp hinges
  • Extra wide wheel base allows greater stability and smoother travelling
  • Solid mudguards able to be used as mounting block
  • Double safety chain attachment with hammer locks
  • Rear dust door enabling float to be fully locked
  • Alloy wheels for a more stylish finish
  • Heavy duty commercial grade 10 ply 195 x 15 tyres
  • 100x 50mm drawbar with aluminium checker plate infill
  • Jockey wheel – heavy duty,
  • Breakaway unit for extra safety
  • LED lights including 6 side marker lights, high stop and tail light
  • Twin awning lights
  • 4.5 metre Fiamma Awning
  • Skylight vent in the accommodation area
  • 2 x pop up vent plus 2 x rotating vents in the rear
  • External storage locker
  • Drawbar storage box for housing gas bottle
  • Insulated roof and internal walls in accommodation area
  • Extra wide loading ramp with rubber matting
  • Gas struts on ramp for easy lifting
  • Stainless steel latches, horse tie-ups and fittings
  • Sliding side windows with insect mesh and grills
  • Lockable pedestrian door with latch to hold back
  • 100 litre underfloor water tank with outside tap
  • Camper split screen door
  • Skylight
  • Magnum Feed Bins with mounting brackets installed on the side of the float
  • Rear Loading Spotlight
  • Broom Holder
  • Mirror
  • Available in any colour choice (EXTRA CHARGE $750)

The inside story:

  • Full rubber fit out – floor and walls
  • Holypan Fibreglass/Aluminium Flooring with 10mm sealed rubber overlay
  • Full padding
  • Urine Drains
  • Huge overhead cover rack
  • Swing out tackbox with 3 saddle racks
  • Removable hot dipped galvanised dividers and head guards
  • Bench unit
  • Underbench cupboards with shelving
  • Huge overhead storage cupboard
  • Twin Gas Hobb/Sink Combo (Certified installation)
  • 120 watt Solar Panel / 100 amp hour battery
  • 12 volt battery charger
  • Gas Hot Water Heater (Certified installation)
  • 85 Litre 12 volt Fridge/Freezer
  • Internal shower with curtain
  • Warm water wash for horses
  • Sureflow 55psi pump and filter
  • Insulated roof
  • Bay sizes can be made to suit your horse i.e 2700 x 750
  • 4 x LED internal lights

***(PHOTO BELOW IS FOR ILLUSTRATION ONLY)****

The outside story:

  • Full aluminium body kit – stone chip protection all around
  • One piece hot dipped galvanised chassis
  • Galvanised steel frame and 2mm aluminium side panels
  • Axles are made from 50mm solid steel bar with 12inc elect brakes
  • Suspension for load sharing on uneven terrain with 9 leaf spring
  • Lubrication points on suspension pins and ramp hinges
  • Extra wide wheel base allows greater stability and smoother travelling
  • Solid mudguards able to be used as mounting block
  • Alloy wheels for a more stylish finish
  • Heavy duty commercial grade 10 ply 195 x 15 tyres
  • 100x 50mm drawbar with aluminium checker plate infill
  • Jockey wheel – heavy duty,
  • LED lights including 6 side marker lights,
  • Twin pop up vents
  • Extra wide loading ramp with rubber matting and cleats
  • Gas struts on ramp for easy lifting
  • Stainless steel latches, horse tie-ups and fittings
  • Open side with safety bars for the horse head
  • Offset pedestrian door with latch to hold back
  • Available in any colour choice (EXTRA CHARGE FOR COLOUR $750)

The inside story:

  • Full rubber fit out – floor and walls
  • Holypan Fibreglass Flooring with 10mm sealed rubber overlay (will never rot)
  • Full padding
  • Removable hot dipped galvanised dividers and head guards
  • Hinged curved chest bars, completely removable and adjustable
  • Completely removable centre bar for carrying hay/furniture
  • Huge padded bum bars with slam gates
  • Full width bum bar and ¼ bar also supplied
  • Overhead rug rack
  • Insulated roof
  • 2 LED internal lights
  • Front window

The outside story:

  • Full aluminium body kit – stone chip protection all around
  • One piece hot dipped galvanised chassis
  • Galvanised steel frame and 2mm aluminium side panels
  • Axles are made from 50mm solid steel bar with 12inc elect brakes
  • Suspension for load sharing on uneven terrain with 9 leaf spring
  • Lubrication points on suspension pins and ramp hinges
  • Extra wide wheel base allows greater stability and smoother travelling
  • Solid mudguards able to be used as mounting block
  • Alloy wheels for a more stylish finish
  • Heavy duty commercial grade 10 ply 195 x 15 tyres
  • 100x 50mm drawbar with aluminium checker plate infill
  • Jockey wheel – heavy duty,
  • LED lights including 6 side marker lights,
  • Twin pop up vents
  • Extra wide loading ramp with rubber matting and cleats
  • Gas struts on ramp for easy lifting
  • Stainless steel latches, horse tie-ups and fittings
  • Open side with safety bars for the horse head
  • Offset pedestrian door with latch to hold back
  • Available in any colour choice (EXTRA FEE FOR COLOUR $750)

The inside story:

  • Full rubber fit out – floor and walls
  • Holypan Fibreglass Flooring with 10mm sealed rubber overlay (will never rot)
  • Full padding
  • Removable hot dipped galvanised dividers and head guards
  • Hinged curved chest bars, completely removable and adjustable
  • Completely removable centre bar for carrying hay/furniture
  • Huge padded bum bars with slam gates
  • Full width bum bar and ¼ bar also supplied
  • Overhead rug rack
  • Insulated roof
  • 2 LED internal lights
  • Front window



The outside story:

  • Full aluminium body kit – stone chip protection all around
  • One piece hot dipped galvanised chassis
  • Galvanised steel frame and 2mm Aluminium side panels
  • PPG Paint
  • Axles are made from 50mm solid steel bar with 12inc elect brake hubs
  • suspension for load sharing on uneven terrain 9 leaf springs
  • 14 x lubrication points on suspension pins and ramp hinges
  • Extra wide wheel base allows greater stability and smoother travelling
  • Solid mudguards able to be used as mounting block
  • Rear dust door enabling float to be fully locked
  • Alloy wheels for a more stylish finish
  • Heavy duty commercial grade 195 x 15 10 ply tyres
  • 100x 50mm drawbar with aluminium checker plate infill
  • Jockey wheel – heavy duty,
  • Emergency break-away unit
  • LED lights including 6 side marker lights, high stop and tail light
  • Twin pop up vents
  • External tack cupboard
  • Insulated roof
  • Extra wide loading ramp with rubber matting and cleats
  • Gas struts on ramp for easy lifting
  • Stainless steel latches, 4 horse tie-ups and fittings
  • Sliding side windows with insect mesh
  • Offset pedestrian door with latch to hold back
  • 100 litre water tanks with outside tap
  • Front c/plate tool box on draw bar
  • Available in any colour choice (white is standard colour there is a extra $750 for colour)

The inside story:

  • Full rubber fit out – floor and walls
  • Full padding
  • Fold up padded seat
  • Flooring Holypan Fibreglass with 10mm sealed rubber overlay (will never rot)
  • Removable hot dipped galvanised dividers and head guards
  • Completely removable centre bar for carrying hay/furniture
  • High and low horse tie-ups
  • 2 saddle swing-out tackbox –
  • Urine drains
  • Bridle hooks
  • Huge bum pads
  • Bench unit with sink and tap
  • Outside tap
  • Underbench cupboards with shelving
  • Huge fully enclosed side cover rack
  • Sureflow 30psi pump and filter
  • Insulated roof
  • 3 LED internal lights
  • Sliding side windows with insect mesh and grills

****(Angle load is a extra option)****

The outside story:

  • Full aluminium body kit – stone chip protection all around
  • One piece hot dipped galvanised chassis
  • Galvanised steel frame and 2mm aluminium side panels
  • Axles are made from 50mm solid steel bar with 12inc elect brakes
  • Suspension for load sharing on uneven terrain with 9 leaf spring
  • Lubrication points on suspension pins and ramp hinges
  • Extra wide wheel base allows greater stability and smoother travelling
  • Solid mudguards able to be used as mounting block
  • Alloy wheels for a more stylish finish
  • Heavy duty commercial grade 10 ply 195 x 15 tyres
  • 100x 50mm drawbar with aluminium checker plate infill
  • Jockey wheel – heavy duty,
  • LED lights including 6 side marker lights,
  • Twin pop up vents
  • Extra wide loading ramp with rubber matting and cleats
  • Gas struts on ramp for easy lifting
  • Stainless steel latches, horse tie-ups and fittings
  • Open window with safety bars for the horse head
  • Offset pedestrian door with latch to hold back on passenger side
  • Available in any colour choice (if its not white coloured floats are a extra $750)

The inside story:

  • Full rubber fit out – floor and walls
  • Holypan Fibreglass Flooring with 10mm sealed rubber overlay (will never rot)
  • Full padding
  • Removable hot dipped galvanised dividers and head guards
  • Hinged curved chest bars, completely removable and adjustable
  • Completely removable centre bar for carrying hay/furniture
  • Huge padded bum bars with slam gates
  • Full width bum bar and ¼ bar also supplied
  • Overhead rug rack
  • Insulated roof
  • 2 LED internal lights
  • Front window

The outside story:

  • Full aluminium body kit – stone chip protection all around
  • One piece hot dipped galvanised chassis
  • Galvanised steel frame and 2mm Aluminium side panels
  • PPG Paint
  • Axles are made from 50mm solid steel bar with 12inc elect brake hubs
  • suspension for load sharing on uneven terrain 9 leaf springs
  • 14 x lubrication points on suspension pins and ramp hinges
  • Extra wide wheel base allows greater stability and smoother travelling
  • Solid mudguards able to be used as mounting block
  • Rear dust door enabling float to be fully locked
  • Alloy wheels for a more stylish finish
  • Heavy duty commercial grade 195 x 15 10 ply tyres
  • 100x 50mm drawbar with aluminium checker plate infill
  • Jockey wheel – heavy duty,
  • Emergency break-away unit
  • LED lights including 6 side marker lights, high stop and tail light
  • Twin pop up vents
  • External tack cupboard
  • Insulated roof
  • Extra wide loading ramp with rubber matting and cleats
  • Gas struts on ramp for easy lifting
  • Stainless steel latches, 4 horse tie-ups and fittings
  • Sliding side windows with insect mesh
  • Offset pedestrian door with latch to hold back Carvan Door
  • 100 litre water tanks with outside tap
  • Front c/plate tool box on draw bar
  • Available in any colour choice (Colour other then white is a extra $750.00)

The inside story:

  • Full rubber fit out – floor and walls
  • Full padding
  • Fold up padded seat
  • Flooring Holypan Fibreglass with 10mm sealed rubber overlay (will never rot)
  • Removable hot dipped galvanised dividers and head guards
  • Completely removable centre bar for carrying hay/furniture
  • High and low horse tie-ups
  • 3 saddle swing-out tackbox –
  • Urine drains
  • Bridle hooks
  • Huge bum pads
  • Bench unit with sink and tap
  • Outside tap
  • Underbench cupboards with shelving
  • Huge fully enclosed side cover rack
  • Sureflow 30psi pump and filter
  • Insulated roof
  • 3 LED internal lights
  • Sliding side windows with insect mesh and grills

Inside Dimensions:
Length: 5275mm
Width: 1980mm
Standard Height: 2225mm
Extended Height: 2325mm Optional Extra $800
Tare Weight: 1700kg approximately

  • Galvanised, Frame Material – Galvanised, Body panel – Aluminium, Wheel Rims – 4 x 15′ Mag Wheels plus Spare 15″ Mag or Sunraysia Wheels under Lock and key Plus Spare Wheel Mounted above Drawbar or where you prefer. 3 x 50mm solid 50mm, Roll Rocker Tandem Suspension 9 springs, tri Axle Electric Brakes, Breakaway System Fitted to Float (Independent braking system that activates itself when float becomes detached from towing vehicle).

We also make our floats partially aluminium – the frame and chassis are still steel for strength and flexibility, but the outside sheeting/cladding is aluminium, thicker aluminium and same strength as steel and still corrugated for strength where the horses are. By having the sheeting aluminium, we are lessoning the weight and also eliminating rust forever as aluminium doesn’t rust. Basically, everything that is non-structural is now aluminium.

Plus, the benefit for the horses is that it is actually cooler inside the float than your standard steel float. Steel absorbs heat and retains it whereas aluminium dissipates it leaving the float walls cool to touch which in turn makes it cool inside the float. It’s a win for both human and horses so to speak.

6 sliding Windows tinted and with fly screen, 4 Pop Up Vents approx.400mm x 250mm, Pop Up Barn Doors with high intensity anti rust strut and special copper hinges or optional extra Swing Open to the side Barn Doors, Ramp Door fitted with high intensity anti rust struts, Draw bar filled in with Checker Plate, Mudguard covered with Checker Plate
Filled in Checker Plate on Rear Light Panels, 2 Draw bar Safety Chains, Fully Padded Dividers and rump Pad, 4 Stainless Steel recessed tie up rings on the outside of the horse float.

Horse Float Lighting:
Rear LED Lights with Reverse Light, 6 Side Amber Lights, 8 Retro Reflectors. Internal 12v LED Lights – one above front entry door and second at rear of float for night time loading.

Horse Float Flooring:

We install a safety feature in the float so that no horses can ever go through the float floor.

A 4mm thick aluminium plate/sheet gets installed in the chassis.

How the aluminium sheet works is that it guarantees that your horses will never go through the floor of your float.

First you have the already reinforced chassis which we use square tubing not angle bar across the width of the float along the whole length of the float at 500mm apart then we use angle bars lengthways to brace everything together like a chessboard. Then we install the 4mm thick aluminium plate and then the 22mm thick honeycomb flooring and then the non slip rubber matting and that is then all glued down so that the float becomes waterproof and you can wash the float out the more the better. The layering of the different materials also can help eliminate road noise.

Nonslip rubber floor matting installed on tailgate ….fully sealed and waterproof, Nonslip rubber matting for ramp door with extra footing support with horizontal mounded rubber panels. Rubber matting on kickboard and pawboard,

Float:
Fully enclosed Side Rug Rack, Swing out Tack Box Fully lined with 3 saddle holders and bridle hooks, lockable and waterproof and can be left outside with tailgate closed. Fly Screen on all windows. Fully Lockable float.

Paint Work: 2 pack paint work White as standard with black trim around windows, side door, barn doors and black and aluminium trim around top side of the horse float. Tinted Windows.

Horse Float Bay Dimensions:
Measurements are taken from the middle of the front bay to the middle of the back bay.

  • 1st Bay 2400mm (Bay closest to front window)
  • 2nd bay 2500mm
  • 3rd Bay 2500mm
  • 4th Bay 2500mm

The bay measurement of the Horse Transport Truck is 2280mm. We measured 2 separate Horse Transport trucks that are used for the transport of race horses which are usually between 15h – 17h.

The horses in the trucks stand in their bays sideways (not on an angle). This should give you some indication of the length of our horse float bays compared to the Horse Transport Truck bays.

With a strong focus on durability and performance, our trailers are built tough and made to last. Whether you’re looking for trailers for sale on the Gold Coast, Sunshine Coast or Brisbane, you won’t find a better trailer anywhere. Choose from our standard range or let us customise a trailer to suit your exact needs.

All our trailers are made locally in purpose-built manufacturing facilities, which means most modifications and customisations are delivered within one week.

Trailers Direct Qld also specialises in custom trailers to match your specific requirements. We offer fast turnaround times and build within your budget.

Every trailer comes with a 12-Month Limited Guarantee.

We offer a range of flexible finance options through trusted lenders to help make your trailer purchase easier. Whether you’re after short-term or long-term solutions, we can help tailor a plan that suits your needs. Click here for more details.

Our Many Happy Clients

Let’s Talk

    Opening Hours - All Locations
    Monday to Friday 8:30am - 5:00pm | Saturday 7.30am - 10.00am
